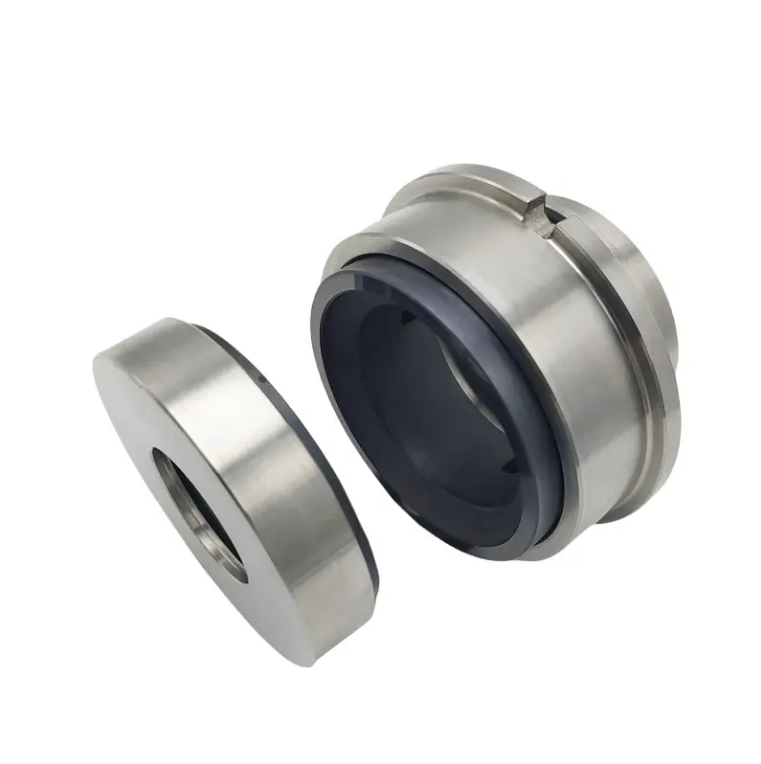

John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal
John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal
Contattaci

John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal

Quantità di ordine minimo : 1pc Prezzo : USD50-1000
Imballaggi particolari : scatola come requisito Tempi di consegna : 20-30 giorni
Termini di pagamento : T/T, Western Union, L/C Capacità di alimentazione : 100000pc/mese
Luogo di origine: Made in China Marca: JR
Certificazione: iso9001 Numero di modello: 587-SP

Informazioni dettagliate
Materiale: Sic sic fkm Funzione: Per la pompa dell'olio, pompa dell'acqua
Codice HS: 848420090 Certificato: ISO9001
Tipo: Guarnizione meccanica 587-SP Standard: Standard
Misurare: Dimensioni personalizzate Applicazione: guarnizione dell'albero
Specifiche: Attrezzatura di carta Meccanica guarnizione meccanica Stile: Guarnizione meccanica 587-SP

Descrizione di prodotto

Mechanical Seal 587, 587-SP Mechanical Seals For Paper-Making Equipment

Mechanical Seal 587 587-SP Single-End Seal For ANDRITZ Equipment



Operational Conditions:

  1. Basic Features
  2. Structure: Single-End
  3. Pressure: High Pressure Mechanical Seals
  4. Speed: High Speed Mechanical Seal
  5. Temperature: High Temperature Mechanical Seal
  6. Performance: Corrosion
  7. Standard: Specific Customization
  8. Model NO.: 587, 587-SP
  9. Balance: Balanced
  10. Specification: Inner Diameter: 38 mm, 48 mm, 53 mm, 65 mm, 90 mm, 100 mm
  11. Product Detailed Description
  12. 587-SP Mechanical Seals for Paper-making Equipment and other ANDRITZ Industrial Pumps
  13. Structural Features: single-end, double balanced, independent direction of rotation, wave spring with spring protector. The still spring structure allows high speed operating conditions. The spring is separated from the sealed mediums so it will not be jammed. This seal component has a simple structure and is easy to install with stable performance.

 Materials:

  • Rotary Ring Face: Carbon/SiC/TC
  • Stationary Ring Face: SiC/TC
  • Elastomers: NBR/FKM/EPDM/Aflas
  • Springs: SS304/SS316/PH17-4
  • Metal Parts: SS304/SS316/SS316L
  • Mediums: l, water, sulphite lyes, paper pulp, acid, alkali and other solvents.
  • Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Performance Capabilities



Temperature
-40℃ to 200℃, dependent on the elastomer
Pressure
Up to 8 bar
Speed
Up to 18 m/s
End play/axial float allowance
±0.1mm
Size
38 mm, 48 mm, 53 mm, 65 mm, 90 mm, 100 mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Carbon, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
  • single-end, double balanced, independent direction of rotation, wave spring with spring protector. The still spring structure allows high speed operating conditions. The spring is separated from the sealed mediums so it will not be jammed. This seal component has a simple structure and is easy to install with stable performance.

John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal 0John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal 1John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal 2

John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal 3John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal 4John Crane 587 Mechanical Seal for Andritz S Series Pumps SMT/Tan Andritz Sp Centrifugal Pumps Seal 5

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
