Casa ProdottiGuarnizioni meccaniche della pompaMechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump

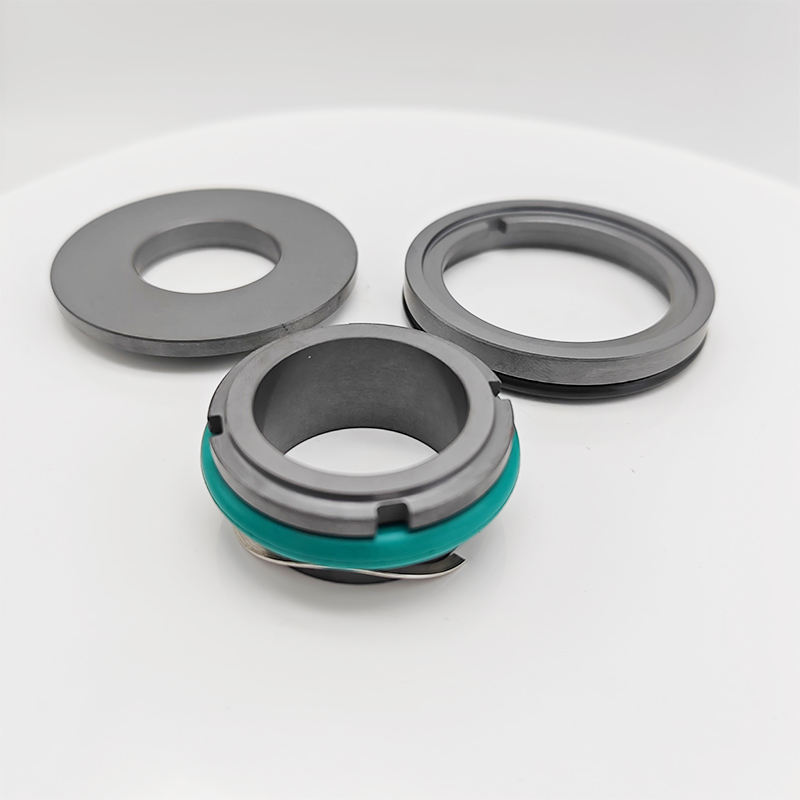

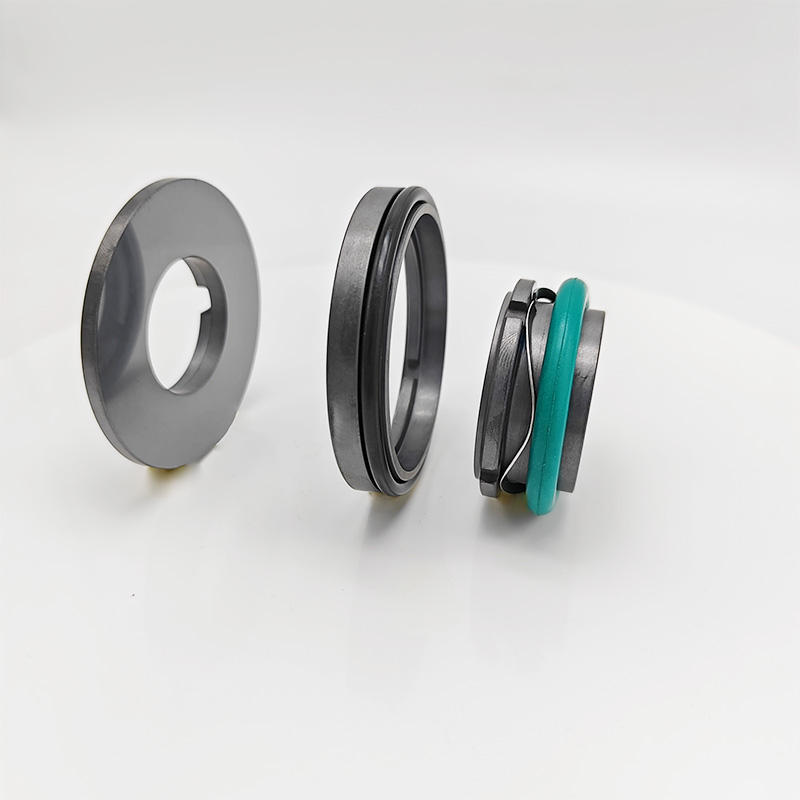

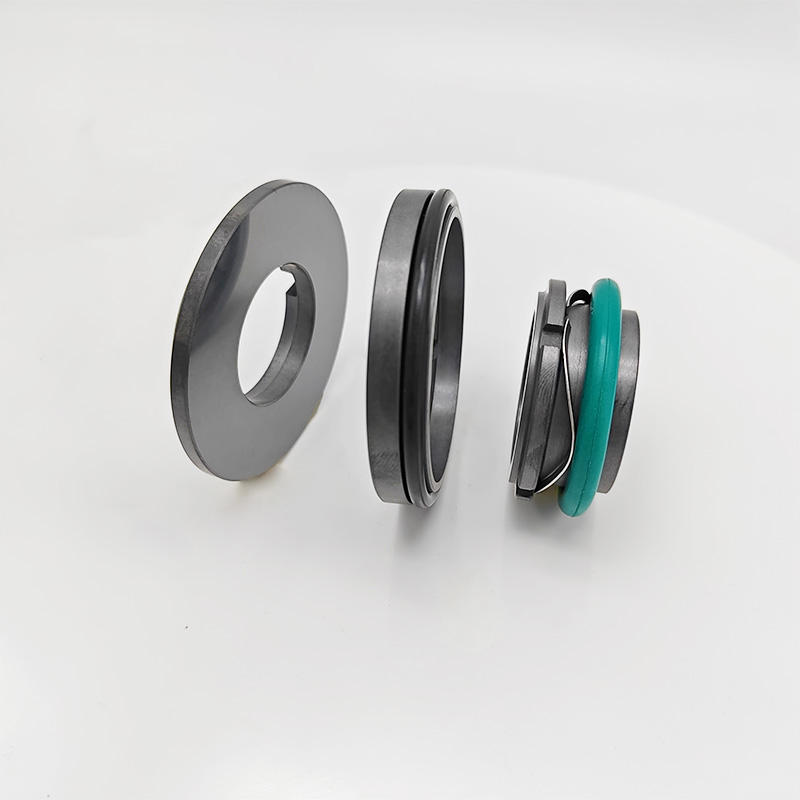

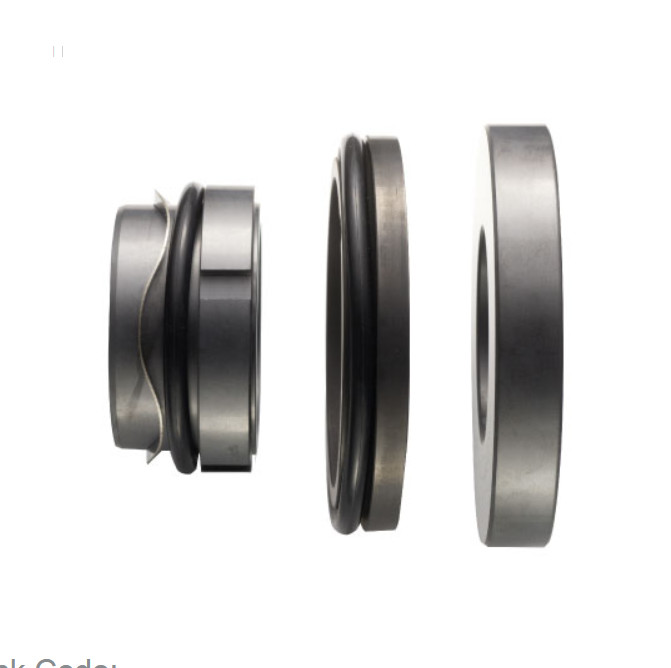

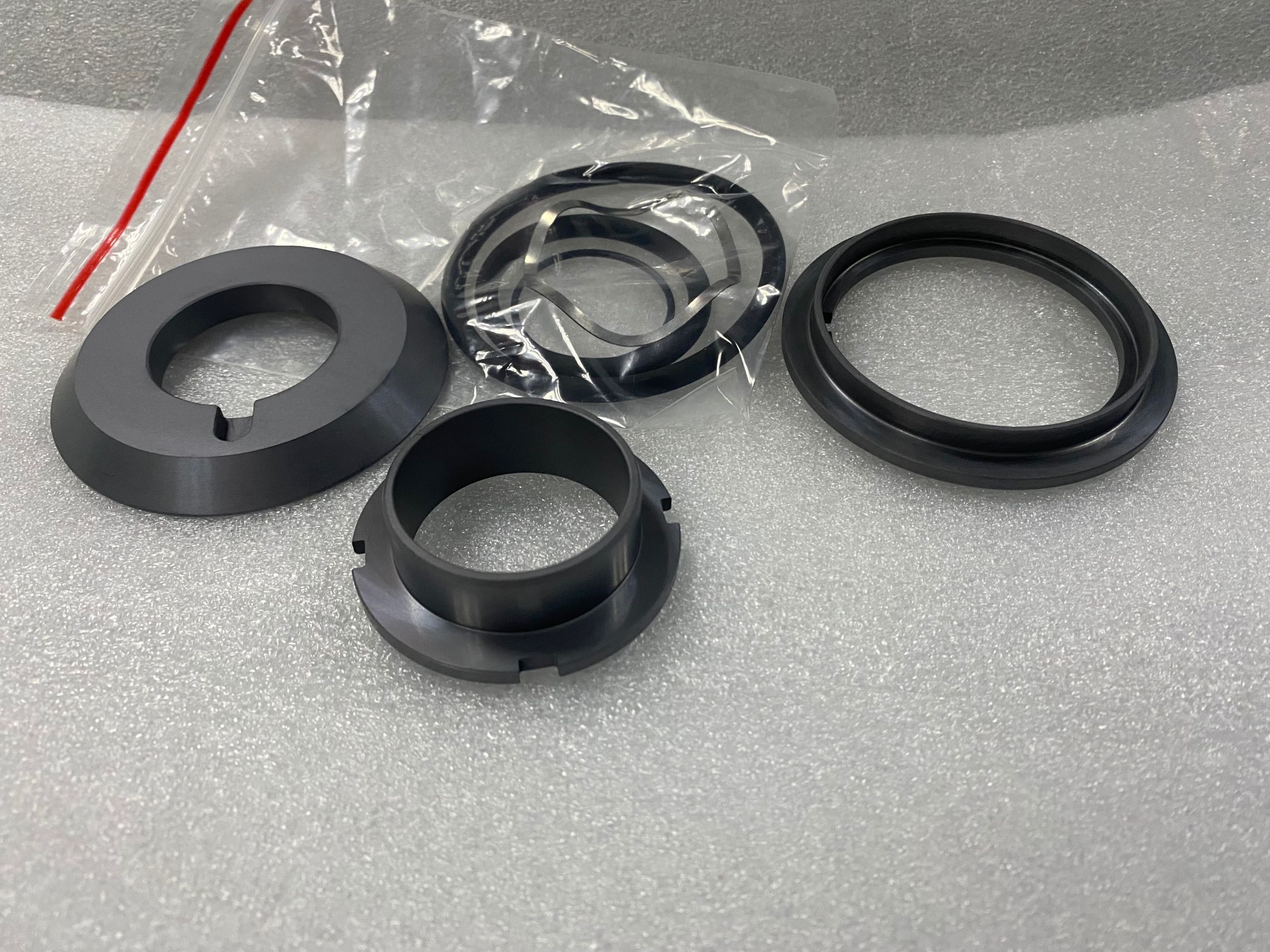

Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump
Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump
Contattaci

Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump

Quantità di ordine minimo : 1pc Prezzo : USD50-1000
Imballaggi particolari : scatola come requisito Tempi di consegna : 20-30 giorni
Termini di pagamento : T/T, Western Union, L/C Capacità di alimentazione : 100000pc/mese
Luogo di origine: MADE IN CHINA Marca: JR
Certificazione: iso9001 Numero di modello: W13U Double Seals

Informazioni dettagliate
Materiale: Sic sic fkm Funzione: Per la pompa dell'olio, pompa dell'acqua
Codice HS: 848420090 Certificato: ISO9001
Tipo: W13U SIGILLO SINGOLA SEALI Standard: Standard
Misurare: Dimensioni personalizzate Applicazione: guarnizione dell'albero
Specifiche: Attrezzatura di carta Meccanica guarnizione meccanica Stile: Sigillo meccanico W13U SIGILLO SINGOLO

Descrizione di prodotto

W13U Single Seal 30.1mm Wave Spring Mechanical Seal For Pump Alfa Waukesha



Operational Conditions:

  1. Basic Features
  2. Pressure: High Pressure Mechanical Seals
  3. Speed: High Speed Mechanical Seal
  4. Temperature: High Temperature Mechanical Seal
  5. Performance: Corrosion
  6. Standard: Specific Customization
  7. Model NO.: W13U
  8. Balance: Balanced
  9. Specification: Inner Diameter: 30.1 mm, 38.1mm,

 Materials:

  • Rotary Ring Face: Carbon/SiC/TC
  • Stationary Ring Face: SiC/TC
  • Elastomers: NBR/FKM/EPDM/Aflas
  • Springs: SS304/SS316/PH17-4
  • Metal Parts: SS304/SS316/SS316L
  • Mediums: l, water, sulphite lyes, paper pulp, acid, alkali and other solvents.
  • Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Performance Capabilities



Temperature
-40℃ to 200℃, dependent on the elastomer
Pressure
Up to 8 bar
Speed
Up to 18 m/s
End play/axial float allowance
±0.1mm
Size
30.1mm, 38.1 mm,
Brand
JR
Face
Carbon, SiC, TC
Seat
Carbon, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

  • W13U double mechanical Seals to suit Waukesha Universal I Pumps.

    Available in Food Grade materials as standard (with FDA compliant materials)

Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump 0

Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump 1Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump 2Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump 3Mechanical Seal Dual Face AES W13U SiC/SiC, FKM For Waukesha Pump 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
