John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump
John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump
Contattaci

John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump

Quantità di ordine minimo : 5pc Prezzo : Negotiated
Imballaggi particolari : scatola come requisito Tempi di consegna : 20-30 GIORNI
Termini di pagamento : T/T, Western Union, L/C Capacità di alimentazione : 100000 PC/mese
Luogo di origine: Made in China Marca: JR
Certificazione: ISO9001 Numero di modello: SE2-AP

Informazioni dettagliate
Materiale: AUTOMOBILE CER NBR DI SIC SIC FKM Funzione: per pompa olio, pompa acqua
Pacchetto di trasporto: Scatola Codice SA: 848420090
Specifica: SE2-AP Certificato: ISO9001
Tipo: Sigillo meccanico SE2-AP Standard: Standard
Stile: Cartucce di tenuta meccanica SE2-AP Nome del prodotto: Sigilli meccanici SE2-AP

Descrizione di prodotto

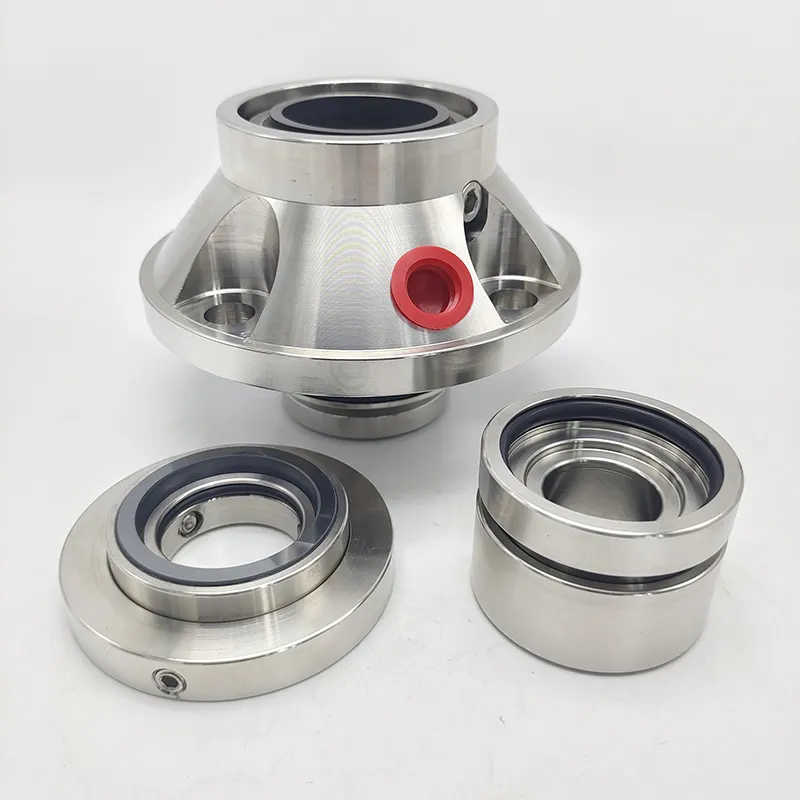

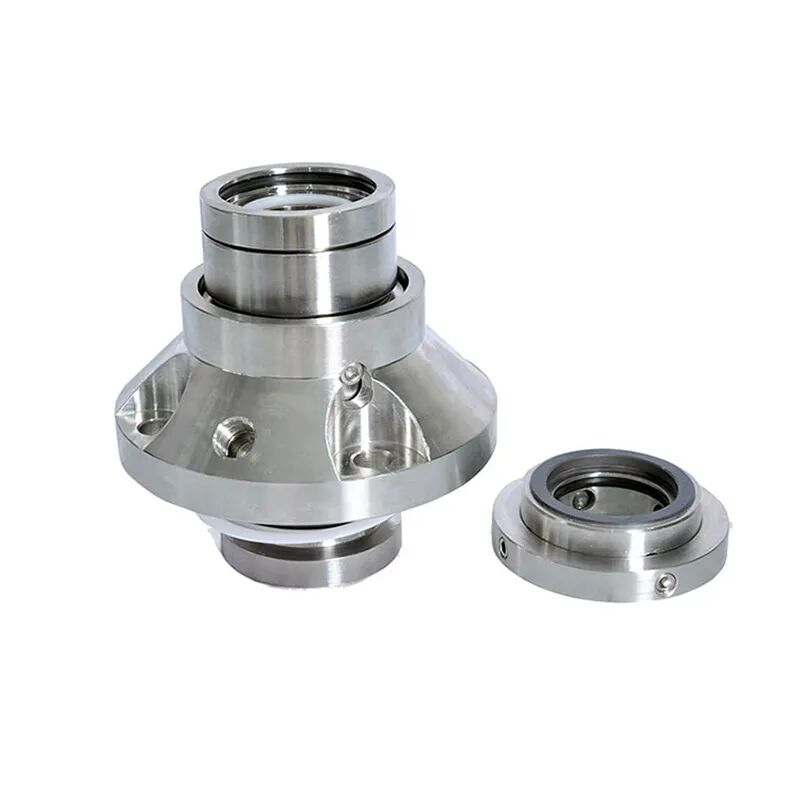

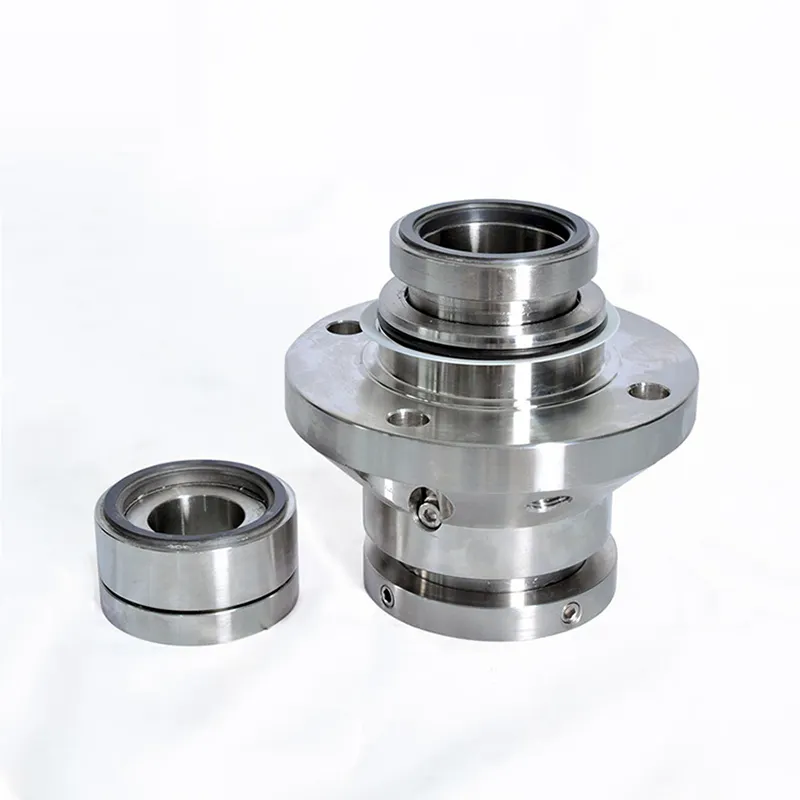

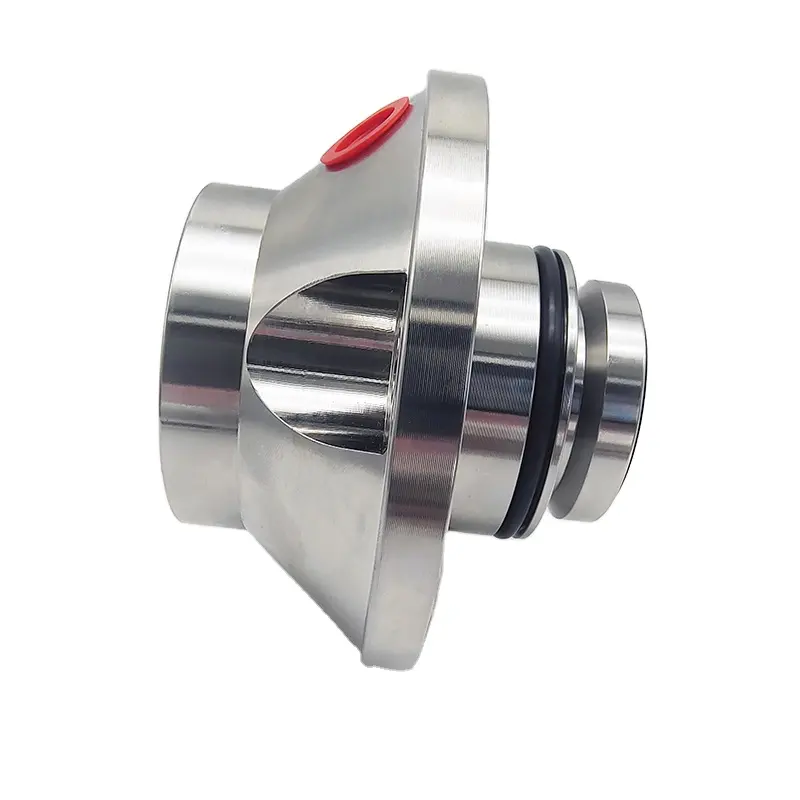

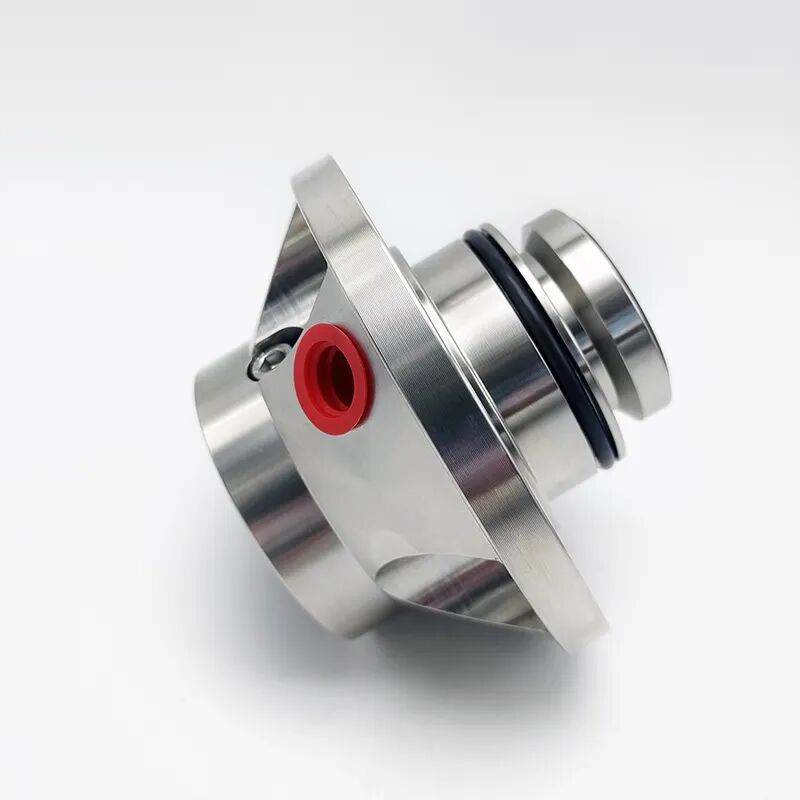

John Cran Se2-Ap Double Face Mechanical Seal Tc Silicon Fkm Seal



Operational Conditions:

  1. TEMPERATURE: 180 C°
  2. PRESSURE LIMITS Process pressure: 20 bar
  3. Seal water pressure: 15 bar
  4. SPEED LIMITS:30m/s

​Materials

  • Seal face: SIC/SIC(product side), SIC/Carbon(atmosphere side)
    O ring: EPDM/FKM
    Spring: 316SS
    Metal part: 304SS/316SS/2205 duplex stainless steel

Performance Capabilities

Performance Capabilities Materical combination
Temperature: -50°C to 204°C, dependent on o-ring material
 Face: Carbon, SiC, TC
Pressure: Up to≦2Mpa Seat: Ceramic, SiC, TC
Speed: Up to 23 m/s O-ring: NBR, EPDM,FEP etc
End play/axial float allowance: ±1mm Spring: SS304, SS316, hastelloy
Sizes:25-100mm or 1″-4.00″
Metal parts: SS304, SS316
  • SE2 safeseal is a customer installed (OEM standard) double balanced barrel seal designed for harsh applications in the pulp and paper industry. The seal is usually used for grinding and environmentally harmful liquids in pulp mill cooking, evaporation and causticization facilities. It is designed as a double pressurized seal, but contains a patented double balance function, which also allows it to be used as a non pressurized (Series) double seal device. Se2-ap seal is specially designed for Sulzer app pump series.
  • John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump 0John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump 1John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump 2John Crane Type SE2-AP O-ring Pusher Seals Double Face seal for sulzer pump 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
