Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole
Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole
Contattaci

Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole

Quantità di ordine minimo : 1 pezzo Prezzo : Negotiated
Imballaggi particolari : scatola come requisito Tempi di consegna : 20-30 giorni
Termini di pagamento : T/T, Western Union, L/C Capacità di alimentazione : 1000pc/mese
Luogo di origine: Made in China Marca: JR
Certificazione: iso9001 Numero di modello: Sigillo meccanico da 22 mm per la pompa Lowara

Informazioni dettagliate
Materiale: TC TC FKM Funzione: Per la pompa dell'olio, pompa dell'acqua
Pacchetto di trasporto: scatola Codice Hs: 848420090
Specifica: Pompa Lowara a sigillo meccanico certificato: ISO9001
Tipo: Pompa di Lowara Standard: Standard
Misurare: 35 mm Nome: Sigillo meccanico da 22 mm per la pompa Lowara

Descrizione di prodotto

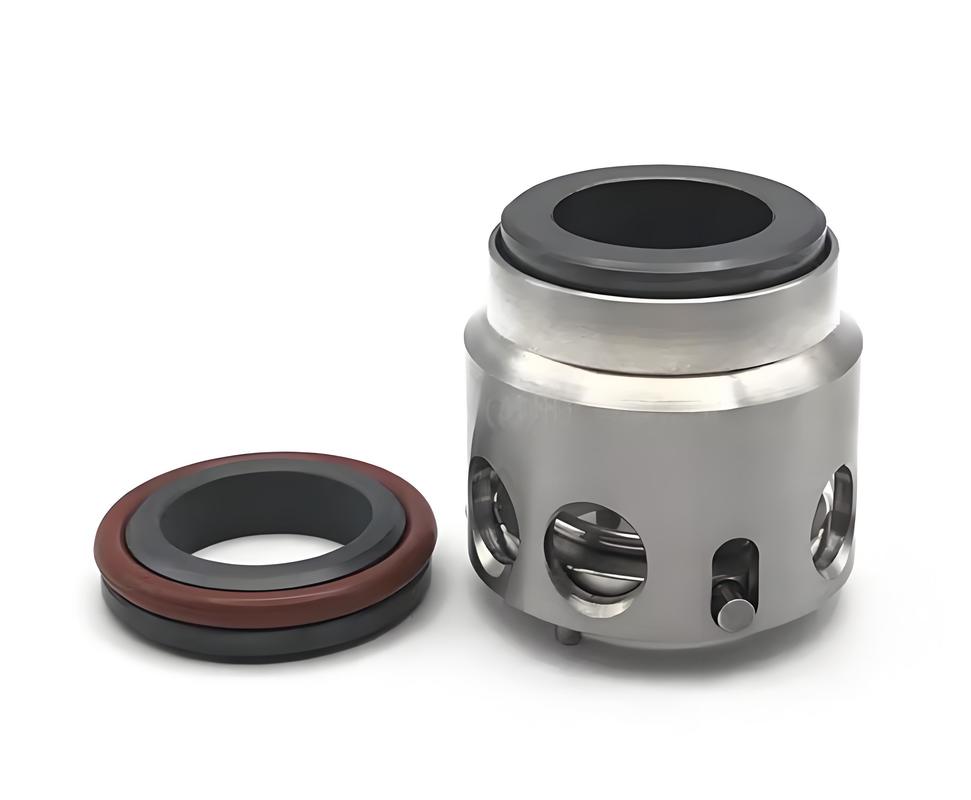

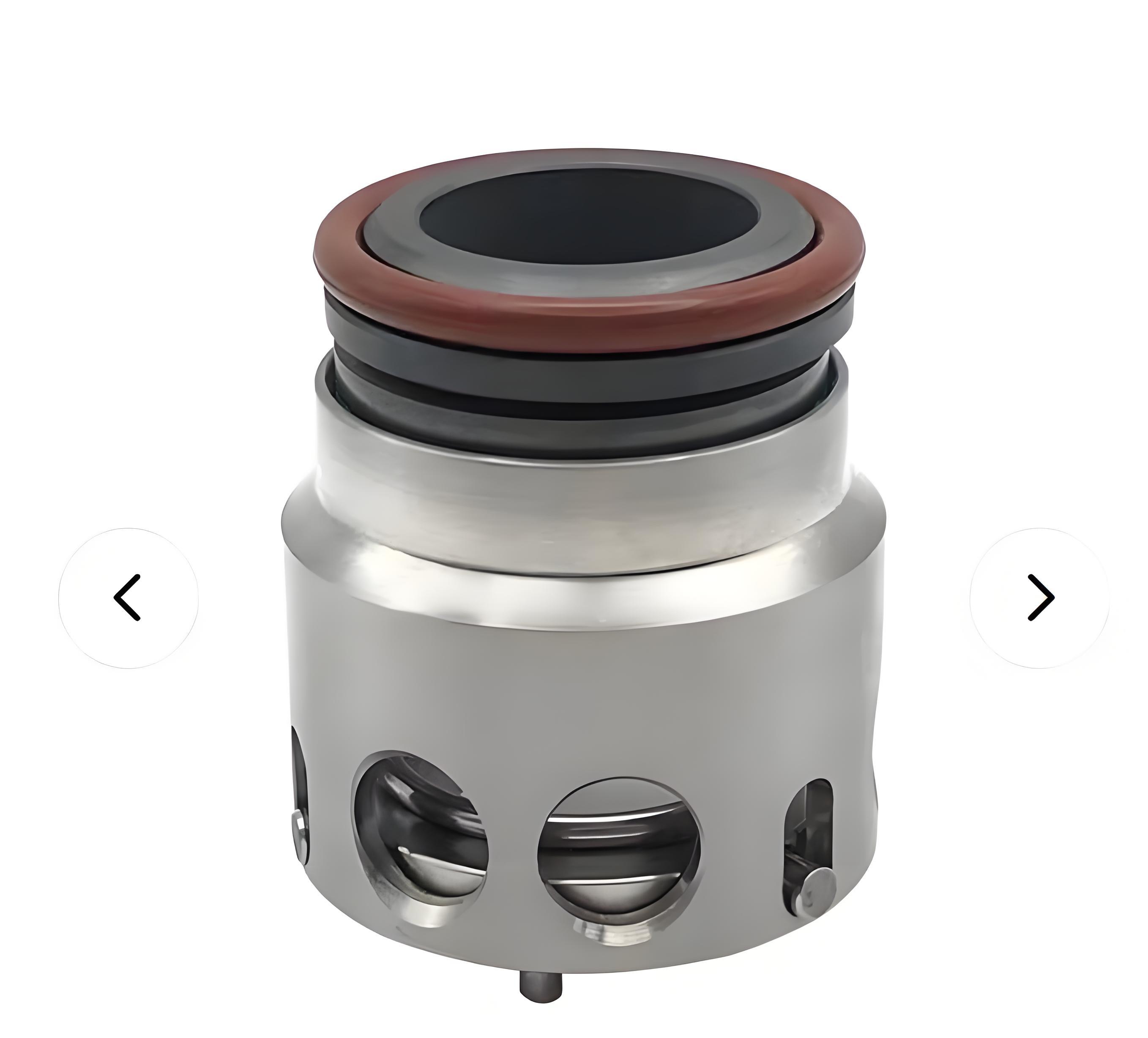

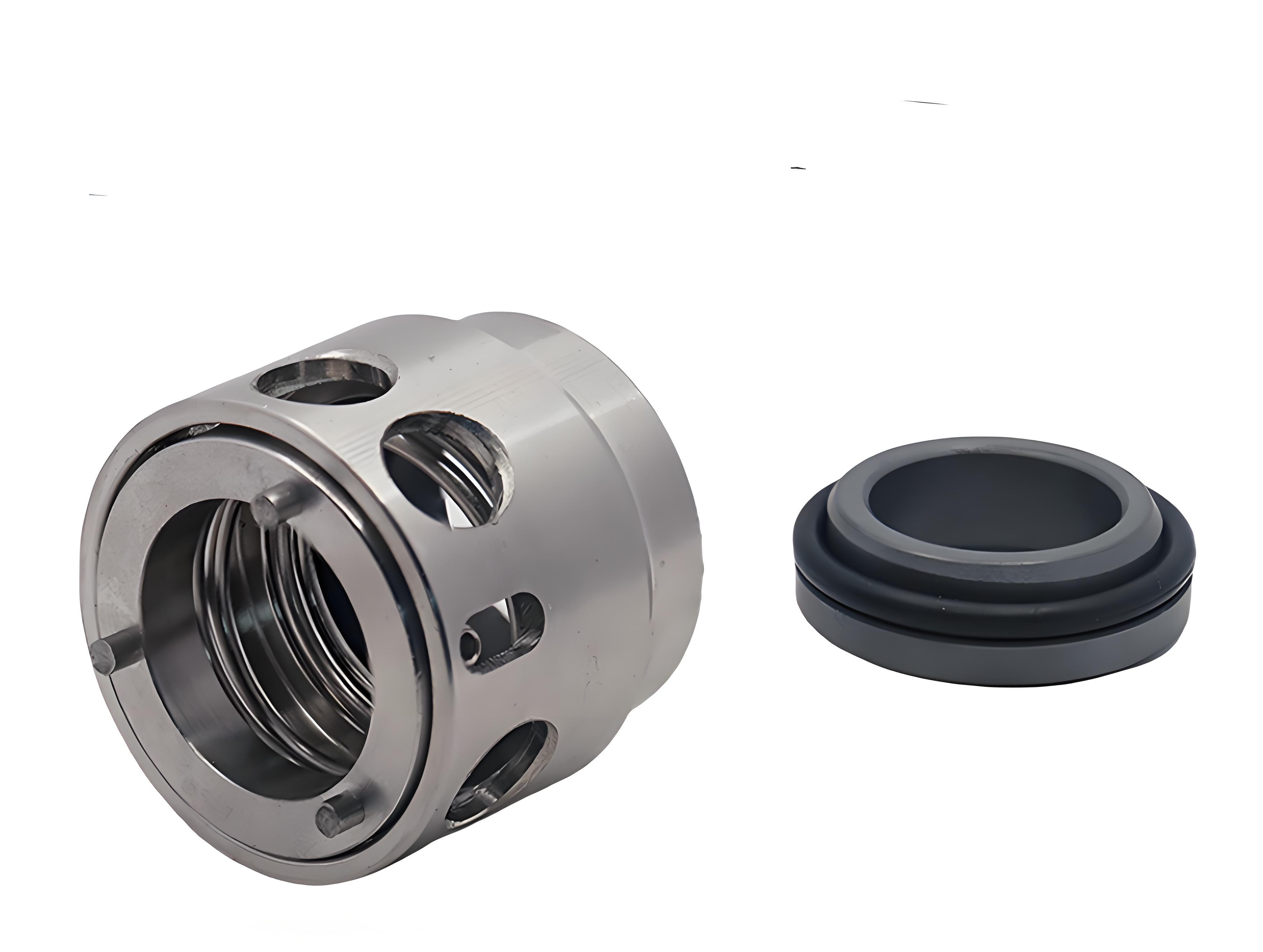

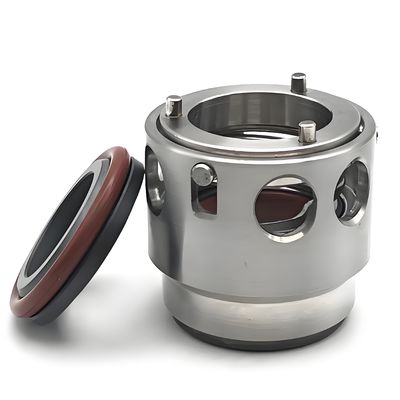

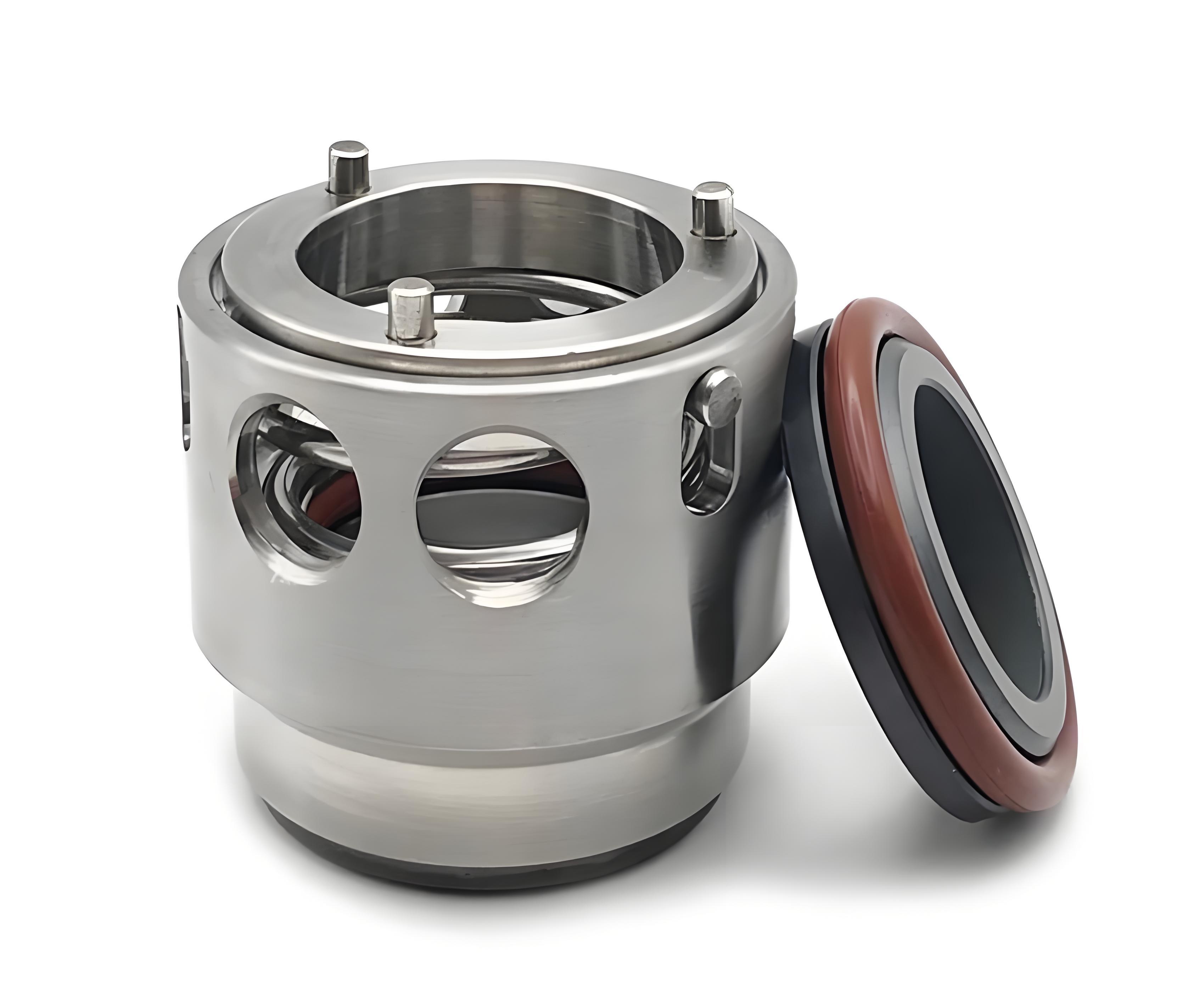

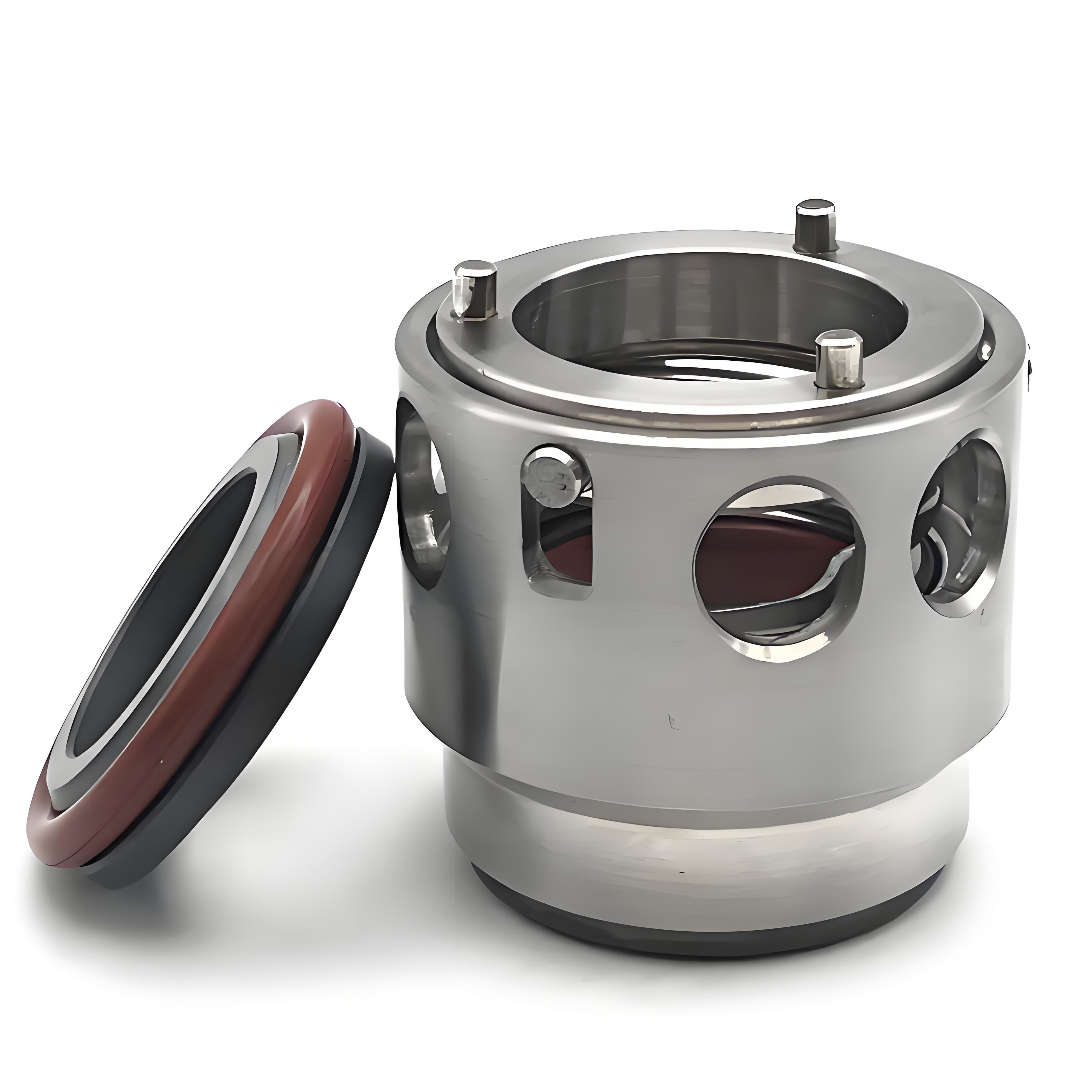

Mechanical Seal 22mm For Lowara SV Pump Mechanical Shaft Seal, Model 33, 46, 66, 92


Operational Conditions:

  1. LW-02-22mm is interchangeable with W-0220.822.E.S SIC/SIC. to suit SV and e-SV series pumps.
  2. Part Number – LWSTKL01AC0
    Fits Pump Models: 33 46 66 92
  3. Temperature: -20ºC to +180ºC
  4. Pressure: ≤2.5MPa
  5. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 17 bar
Speed
Up to 25 m/s
End play/axial float allowance ±0.1mm
Size 22mm/26mm
Brand JR
Face Carbon, SiC, TC
Seat Carbon, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.



Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole 0



Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole 1Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole 2Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole 3Lowara Mechanical Seal Vulcan 822 822X with Hole and With Hole 4



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
