Casa ProdottiGuarnizione meccanica della singola primaveraElastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal

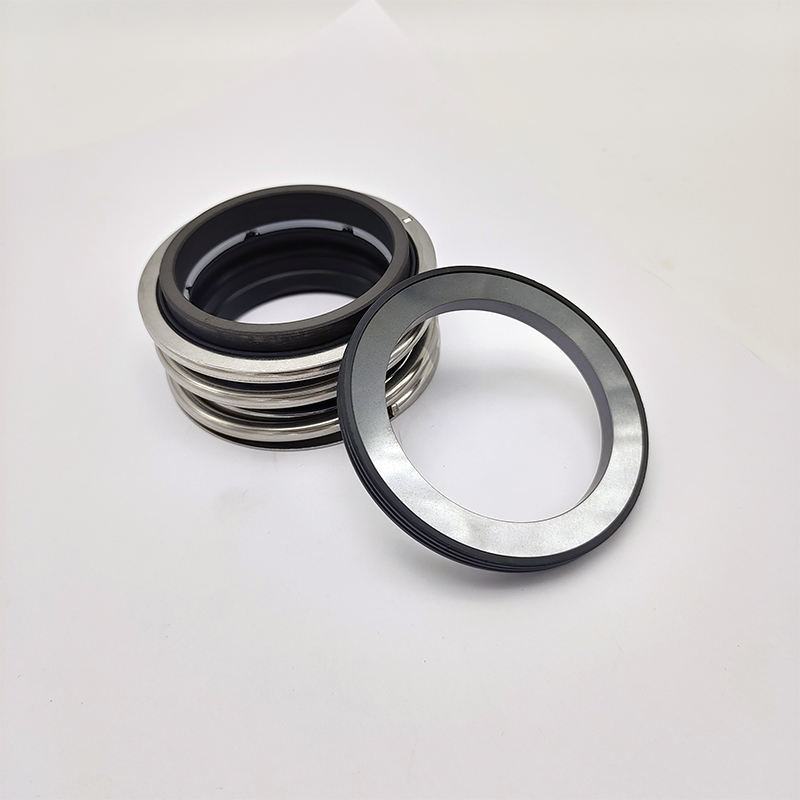

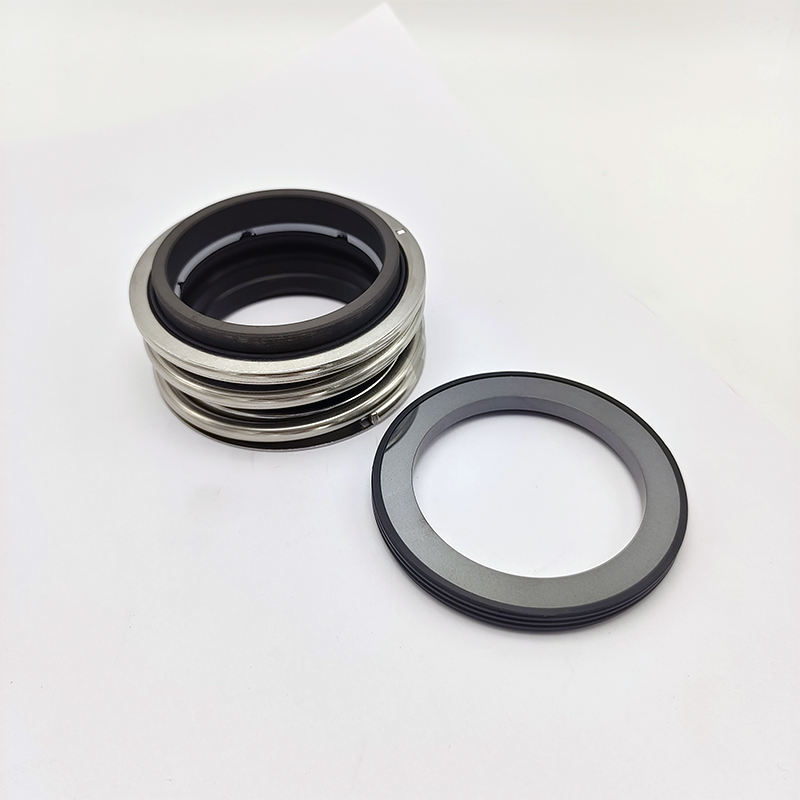

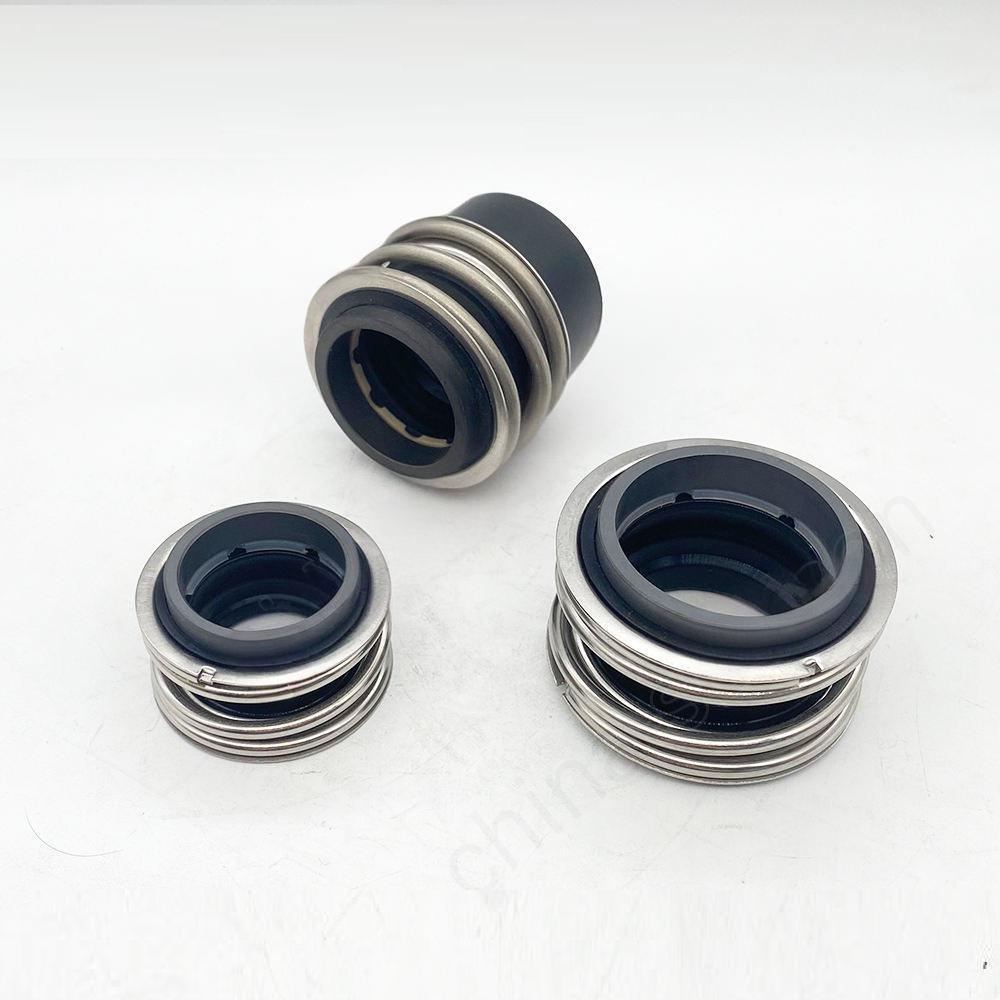

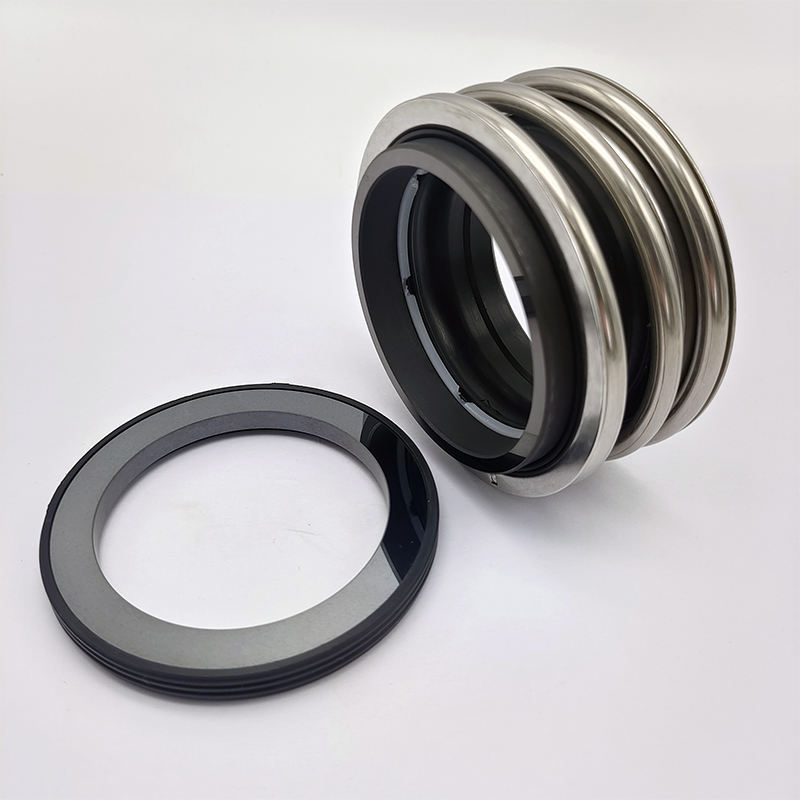

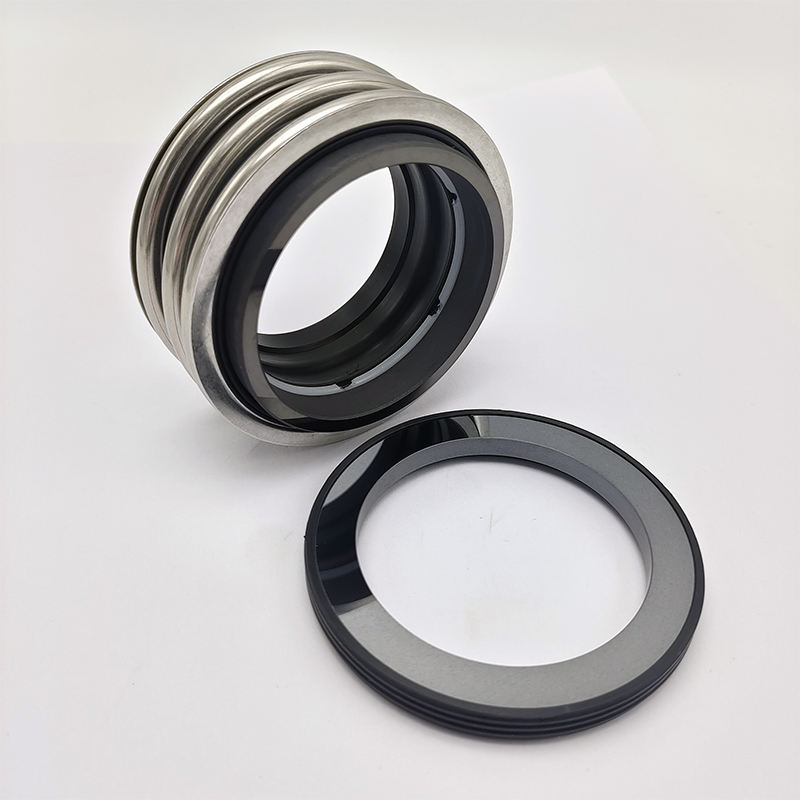

Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal
Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal
Contattaci

Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal

Quantità di ordine minimo : 100 % Prezzo : Negotiated
Imballaggi particolari : scatola come requisito Tempi di consegna : 10 giorni
Termini di pagamento : T/T, Western Union, L/C Capacità di alimentazione : 10000000pc/mese
Luogo di origine: Made in China Marca: JR
Certificazione: iso9001 Numero di modello: EMG1 EMG12 EMG13

Informazioni dettagliate
Materiale: Sic siic fkm cer car nbr Funzione: Per la pompa dell'olio, pompa dell'acqua
Codice HS: 848420090 Specifiche: Sigillo Burgmann EMG1 EMG12 EMG13 SEAL meccanico
Certificato: ISO9001 Tipo: Burgmann EMG1 EMG12 EMG13 SEAL
Standard o non stand: Standard Misurare: 12-40mm
Nome prodotto: Sigillo meccanico EMG1 EMG12 EMG13 Campione: Consentito
Pompa: Burgmann EMG1 EMG12 EMG13

Descrizione di prodotto

Elastomer Bellow Seal Burgmann EMG1 EMG12 EMG13 Mechanical Seal For Pump



Operations Conditions:



  1. Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
  2. Temperature: -30°C~200°C
  3. Pressure: ≤1.2MPa
  4. Speed: ≤ 12 m/Sec
  5. Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.

Materials:

  • Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless,
  • Ni-binder Tungsten Carbide Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,
  • Silicon Carbide Sintered Pressureless,Silicon Carbide Reaction Bonded Secondary Seal:Nitrile(NBR),
  • Ethylene Propylene(EPDM),Fluorocarbon Rubber(FKM) Spring and Metal Parts:Stainless Steel,Stainless Steel
  • Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids

Performance Capabilities

Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 10 bar
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 12mm to 100mm
Brand LM
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Detail

1.From 12mm to 20mm is packed in plastic sheets grouply and M box.


2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.

Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal 0

d1 d3 d6 d7 d11 d12 da db*) dST lS l l1 l1k l2 l1N l5 l6 l10 l12 l14 l15 l16 l28 R
14 19.7 21 25 20.5 24.6 27 17.5 28.5 15 17 28.4 35 - - 1.5 4 7.5 6.5 5.6 1.2 3.8 6.6 1.2
15 20.8 - - 20.5 24.6 28.5 18.5 30 15 17 - - - - - - - 7.5 6.6 1.2 3.8 - 1.2
16 21 23 27 22 28 28.5 19.5 30 15 17 28.4 35 33.4 40 1.5 4 7.5 8.5 7.5 1.5 5 6.6 1.5
18 23.7 27 33 24 30 32 21.5 33 17 19.5 30 37.5 - - 2 5 8.5 9 8 1.5 5 7.5 1.5
20 26.7 29 35 29.5 35 37 24 38 19 21.5 30 37.5 - - 2 5 8.5 8.5 7.5 1.5 5 7.5 1.5
22 27.7 31 37 29.5 35 37 26 38 19 21.5 30 37.5 37.5 45 2 5 8.5 8.5 7.5 1.5 5 7.5 1.5
24 31.2 33 39 32 38 42.5 28 44 19 22.5 32.5 40 - - 2 5 8.5 8.5 7.5 1.5 5 7.5 1.5
25 31.2 34 40 32 38 42.5 29 44 19 23 32.5 40 - - 2 5 8.5 8.5 7.5 1.5 5 7.5 1.5
28 35 37 43 36 42 49 32 50 23 26.5 35 42.5 42.5 50 2 5 8.5 10 9 1.5 5 7.5 1.5
30 37 39 45 39.2 45 49 34 50 23 26.5 35 42.5 - - 2 5 8.5 11.5 10.5 1.5 5 7.5 1.5
32 40.2 42 48 42.2 48 53.5 36 55 23.5 27.5 35 42.5 - - 2 5 8.5 11.5 10.5 1.5 5 7.5 1.5
33 40.2 42 48 44.2 50 53.5 37 55 23.5 27.5 35 42.5 - - 2 5 8.5 12 11 1.5 5 7.5 1.5
35 43.2 44 50 46.2 52 57 40 59 24.5 28.5 35 42.5 - - 2 5 8.5 12 11 1.5 5 7.5 1.5
38 46.2 49 56 49.2 55 59 43 61 25 30 36 45 46 55 2 6 10 11.3 10.3 1.5 5 9 1.5
40 48.8 51 58 52.2 58 62 45 64 25.5 30 36 45 - - 2 6 10 11.8 10.8 1.5 5 9 1.5
43 51.8 54 61 53.3 62 65.5 48 67 25.5 30 36 45 - - 2 6 10 13.2 12 2 6 9 2.5
45 53.8 56 63 55.3 64 68 50 70 25.5 30 36 45 - - 2 6 10 12.8 11.6 2 6 9 2.5
48 56.8 59 66 59.7 68.4 70.5 53 74 26 30.5 36 45 51 60 2 6 10 12.8 11.6 2 6 9 2.5
50 58.8 62 70 60.8 69.3 74 55 77 26 30.5 38 47.5 - - 2.5 6 10.5 12.8 11.6 2 6 9.5 2.5
53 62.2 65 73 63.8 72.3 78.5 58 81 29 33 36.5 47.5 - - 2.5 6 12 13.5 12.3 2 6 11 2.5
55 64.2 67 75 66.5 75.4 81 60 83 30 35 36.5 47.5 59 70 2.5 6 12 14.5 13.3 2 6 11 2.5
58 67.2 70 78 69.5 78.4 85.5 64 88 31 37 - - - - 2.5 6 12 14.5 13.3 2 6 11 2.5
60 70 72 80 71.5 80.4 88.5 66 91 32 38 41.5 52.5 59 70 2.5 6 12 14.5 13.3 2 6 11 2.5
65 75 77 85 76.5 85.4 93.5 71 96 34 40 41.5 52.5 - - 2.5 6 12 14.2 13 2 6 11 2.5
68 78 81 90 82.7 91.5 96.5 74 100 34 40 - - - - 2.5 7 12.5 14.9 13.7 2 6 11.3 2.5
70 80 83 92 83 92 99.5 76 103 34 40 48.7 60 - - 2.5 7 12.5 14.2 13 2 6 11.3 2.5
75 85.5 88 97 90.2 99 107 81 110 34 40 48.7 60 - - 2.5 7 12.5 15.2 14 2 6 11.3 2.5
80 90.5 95 105 95.2 104 112 86 116 34 40 48 60 - - 3 7 13 16.2 15 2 6 12 2.5
85 96 100 110 100.2 109 120 92 124 35 41 46 60 - - 3 7 15 16 14.8 2 6 14 2.5
90 102 105 115 105.2 114 127 97 131 38 45 51 65 - - 3 7 15 16 14.8 2 6 14 2.5
95 107 110 120 111.6 120.3 132 102 136 39 46 51 65 - - 3 7 15 17 15.8 2 6 14 2.5
100 112 115 125 114.5 123.3 137 107 140 40 47 51 65 - - 3 7 15 17 15.8 2 6 14 2.5
110 123 - - - - 150 118 154 43 49 - - - - - - - - - - - - -

Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal 1Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal 2Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal 3Elastomer Bellows Seal EagleBurgmann Type EMG1/EMG2/EMG3 Replacement Mechanical Seal 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
